How to change VAPORESSO PM80 settings

EthanEthan

Five presses of the power button in two seconds turn the VAPORESSO TARGET PM80 on or off, three presses lock or unlock it, and pressing "+" and "–" together opens the settings menu, where you choose Smart VW, VW or VV mode. Set the wattage to match your GTX coil: 45–60W for the 0.2Ω mesh coil and 32–45W for the 0.3Ω.

The VAPORESSO PM80 is a sub-ohm pod mod with a maximum output of 80W. Its compact body has an ergonomic grip, and the power and adjustment buttons sit on the side, so it's quick and easy to operate.

Inside, the AXON chipset fires in 0.001 seconds and can recommend a power range for the coil you're using. The PM80 uses coils from the VAPORESSO GTX coil family. If you also use a VAPORESSO box mod, see our guides to the Target Mini 2 settings, SWAG settings and Luxe S settings. The PM80 charges over Micro USB; if you'd like a current VAPORESSO pod mod that also takes GTX coils, the ARMOUR G2 and GS2 charge over Type-C.

Before you start vaping with your new VAPORESSO PM80, read the instructions below to set it up safely and conveniently.

How to Get Started with Your VAPORESSO PM80

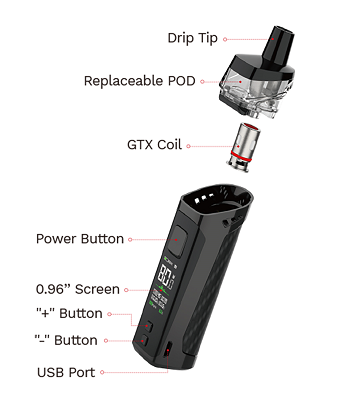

Exploded view of the VAPORESSO TARGET PM80 showing the drip tip, replaceable pod, GTX coil, power button, 0.96-inch screen, plus and minus buttons and USB port

Step 1: Install the Coil

Take the coil out of the TARGET PM80 package and insert it firmly into the pod.

Step 2: Replace the Coil

  1. Make sure the pod is empty before you replace the coil.
  2. Pull out the used coil.
  3. Install a new coil firmly.

GTX coil installed incorrectly in the TARGET PM80 pod, marked with a red X Incorrect installation

GTX coil installed correctly in the TARGET PM80 pod, marked with a green check Correct installation

Step 3: Fill the E-Liquid

  • Open the silicone plug at the bottom of the pod.
  • Gently insert the tip of the e-liquid bottle into the filling slot and squeeze the e-liquid through the slot.
  • Wait 5 minutes for the e-liquid to soak into the coil.

Step 4: Power on the Device

Click the power button 5 times in 2 seconds to power the device on or off.

Step 5: Power Adjustment

The TARGET PM80 uses the GTX coil platform, so check the suggested power for your coil before you start vaping.

GTX MESH Coils GTX 0.2Ω MESH GTX 0.3Ω MESH
Suggested Power 45–60W 32–45W

Step 6: Start Vaping

Press the power button to vape.

Step 7: Charge the Battery

After you connect the USB cable, the screen shows the battery level and the remaining charging time.

Step 8: Settings

SYSTEM LOCK/UNLOCK: press the power button 3 times.

Press the "+" and "–" buttons together to enter the settings menu:

  • SMART VW: the device adjusts the power automatically to suit the coil.
  • VW: wattage adjustment mode.
  • VV: voltage adjustment mode.
  • PUFF: the puff counter records 7 days of vaping information.
  • DEFAULT: restore factory settings.
  • THEME: choose a theme color.
  • EXIT: go back to the main screen.

Protections

USB Input Protection on the VAPORESSO PM80 is triggered when the USB input voltage is too high. If it appears while you're charging, unplug the cable and switch to a standard USB charger with the proper current and voltage range (see Caution 4 below).

No. Protections Situation
1 USB Input Protection The USB input voltage is too high
2 Low Battery Protection The battery drops too low
3 No Load Protection The device detects no cartridge on the battery
4 Short-circuit Protection The device detects a short circuit
5 Overtime Protection You vape continuously for more than 10 seconds
6 Overheat Protection The device detects an overheated PCBA

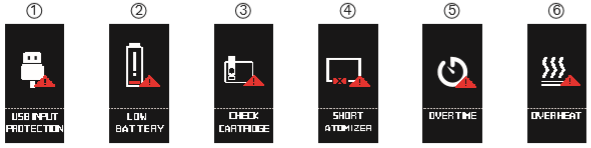

Six TARGET PM80 screen icons for USB input protection, low battery, check cartridge, short atomizer, over time and overheat

Cautions

  1. Turn off the device when you're not using it.
  2. Don't leave the device unattended while it's charging.
  3. Don't drop, throw or abuse your device, which may cause damage.
  4. Use a standard USB output charger with the proper charging current and voltage range.
  5. Keep it away from water and any flammable gas or liquid.
  6. Don't expose the device to direct sunlight, dust, moisture or mechanical shock.
  7. Don't expose the device to extreme temperatures (recommended range: -10 to 60°C / 14 to 140°F while using and -10 to 45°C / 14 to 113°F while storing).
  8. EEE recycling: don't treat the product as household waste. Hand it over to the applicable collection point for recycling electrical and electronic equipment.
  9. Battery recycling: don't treat the product battery as household waste. Hand it over to the applicable used battery collection point for recycling.
  10. Only have your device repaired by VAPORESSO. Don't try to repair it yourself, as damage or personal injury may occur.

Warnings

This refillable electronic cigarette is intended for use with compatible e-liquid, which may contain nicotine. Nicotine is an addictive substance, and its use is not suitable or recommended in the following cases:

  1. This device is not suitable for:
    • Anyone under 21.
    • People with heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease, or difficulty breathing due to bronchitis, emphysema or asthma.
    • People with an overactive thyroid gland or phaeochromocytoma (a tumor of the adrenal gland that can affect blood pressure).
    • People taking certain medications, such as theophylline, ropinirole or clozapine.
  2. This device is not recommended for:
    • Non-smokers
    • Pregnant or breastfeeding women
  3. You may experience the following if you use nicotine-containing e-liquid with this product. If it happens, consult a healthcare professional and show them this leaflet if possible: Feeling faint, nausea, dizziness, headache, coughing, irritation of the mouth or throat, stomach discomfort, hiccups, nasal congestion, vomiting, chest palpitations or pain, or an irregular heart rate.
