Most VAPORESSO Revenger settings sit behind the touch-button lock. Press the power switch on the right side three times to unlock the buttons, then hold the mode button for three seconds (or press it three times) to open the mode and system menus. Five quick presses of the fire button turn the device on or off.
This guide covers the VAPORESSO Revenger X (the updated version of the Revenger), plus the original VAPORESSO Revenger, Revenger Go and Revenger Mini. For other VAPORESSO mods, see our guides to the GEN settings, Luxe S settings and Tarot Nano settings.
The Revenger family is one of VAPORESSO's best-known mod series. Learning the Revenger settings is the first step to getting comfortable with the kit, and this article answers the questions we hear most often, such as how to unlock a VAPORESSO Revenger and how to set the clock. For a look at the kit itself, see our Revenger kit overview.
General Settings
Switch on/off: press the fire button five times in quick succession, within 2 seconds, to turn the device on. Do the same to power it off.
Unlock: with the device on, quickly press the power switch on the right side three times in a row to unlock your Revenger.

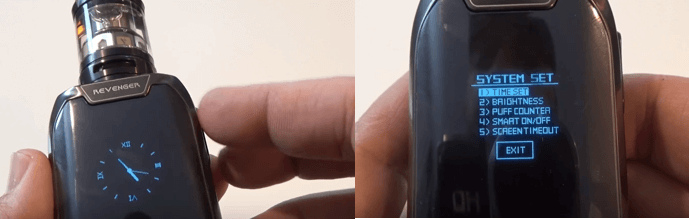

Set the clock: unlock the touch buttons first. Then hold the mode button for three seconds, or press it three times quickly, to enter the system settings menu and choose "Time set." Press the "Function" button to select the part you want to change, and use UP or DOWN to set it.
Charging: the Revenger has a quick charge system and an equalizing charge system. Plug in the USB cable to charge the battery; the OLED shows the current battery level and the remaining charging time, and the screen stays lit while charging.
Atomizing Settings
Atomizer recognition: the mod reads the coil's resistance as soon as it detects a connection. It also recognizes the coil type: when a KANTHAL coil is attached, the mod shifts from TC to wattage mode automatically.

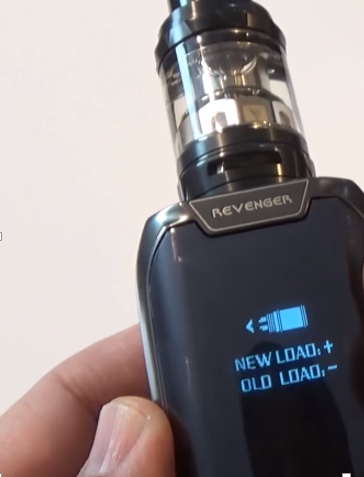

Changing the atomizer: remove the base, unscrew the GT Core and screw in a new GT Core, then secure the base back in place. The NRG tank series takes a range of GT Cores, so choose the one you prefer. For better temperature control, the mod asks whether you've attached a new atomizer, and the display shows "NEW LOAD: +" and "OLD LOAD: -". Press UP if the atomizer is new so the mod reads the new resistance; press DOWN to keep the locked resistance.
Vaping Settings
- Vaping: hold the fire button and inhale through the mouthpiece, then release the fire button and exhale.
- Adjusting the wattage: unlock the touch buttons first. Press the "DOWN" button to increase the wattage and the "UP" button to decrease it.
-

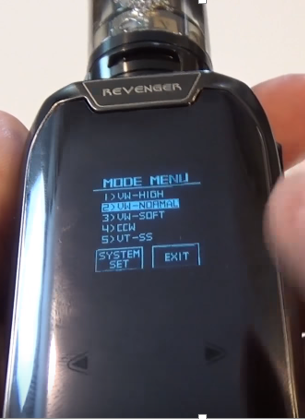

Switching vaping modes: unlock the touch buttons first. Then hold the mode button for three seconds, or press it three times quickly, to enter the vaping modes menu and the system settings menu. You can choose from these modes:
- Smart VW Mode
- CCW Mode
- VT-Ni / VT-Ti / VT-SS / TCR (M1, M2) Mode
- CCT Mode
- Bypass Mode

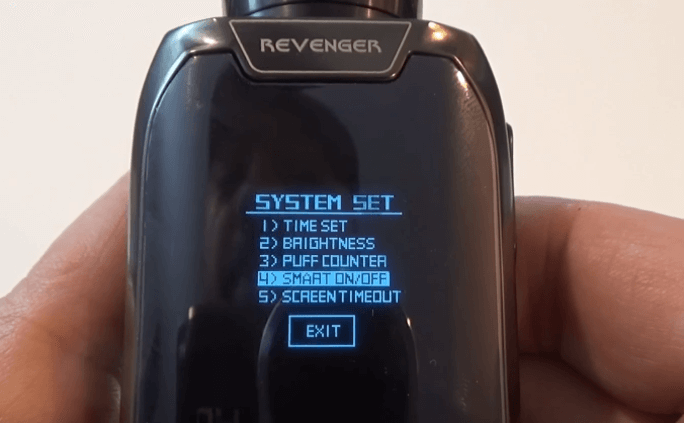

Smart ON/OFF is an advanced variable wattage function that you switch on or off in the system settings menu; it doesn't affect VW (H/N/S). Open Smart ON/OFF and choose YES or NO to confirm.
For more detailed help with your settings, contact VAPORESSO customer service.
