How to change Vaporesso Target Mini 2 Settings

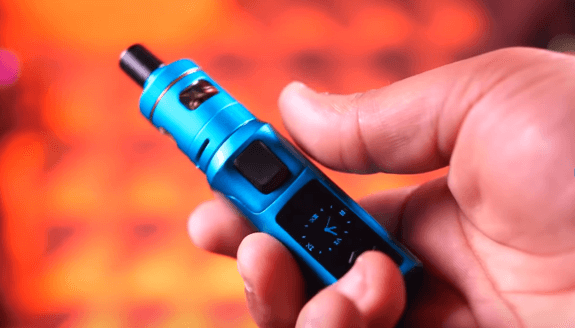

Are you looking for a functional and compact designed vape device for vaping? Support by an in-built 2000mAh battery with OMNI 4.2 chipset, Target Mini from Vaporesso can be an ideal choice for you to consider. Before getting started, it's essential to learn some key points about Vaporesso Target settings. Only when you know how to use Vaporesso Target Mini II properly, then you can enjoy vaping with your device comfortably and smoothly.



target-mini-2-2

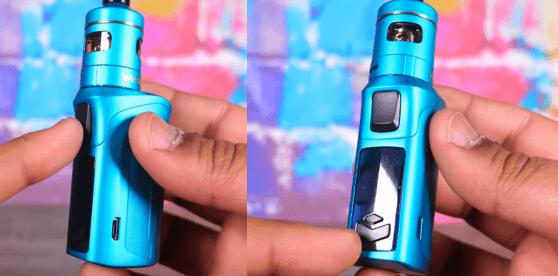

To set up this little vaping monster, first, you should learn the functions of each button it has. The button above screen is the fire button which is applied to switch on/off your device and vaping control. There are three buttons at the bottom of the screen. The mid-above one is the mode button, which is the key to access settings, below the mode button is the up button and down button, which are for the parameters adjusting.



target-mini-2-3

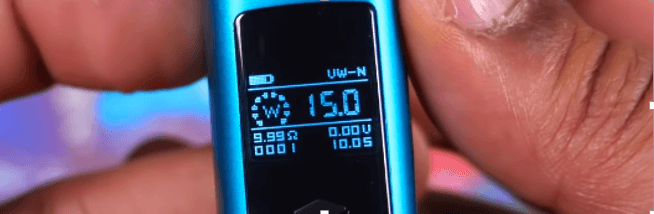

When the device is turn on, the display on the screen can divide into three parts. Upper left is the battery indicator, and the current vaping mode is showing on the upper right. The middle section is the setting value connected to the current model. From 2 o'clock to 10 o'clock, the lower part has four parameters, which are instant voltage/wattage, last vaping duration, puff counter, and coil resistance value.



target-mini-2-4



After a basic understanding, now we can move into the specific use introduction.



General Settings

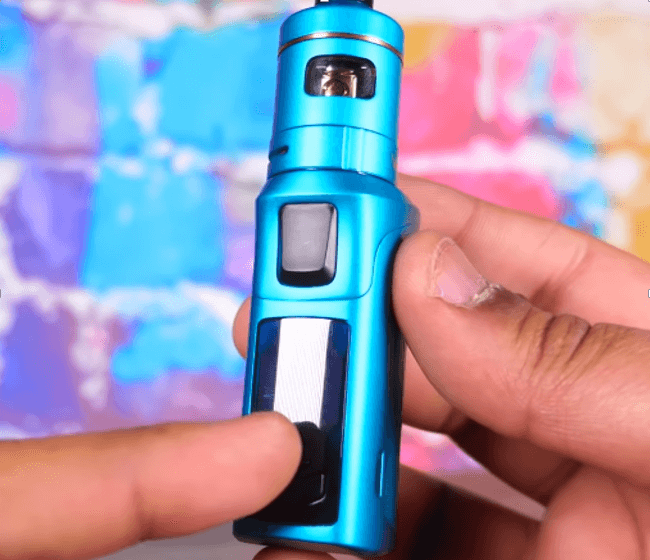

-Power on/off

Continually five presses of the fire button to turn on or off.



target-mini-2-5

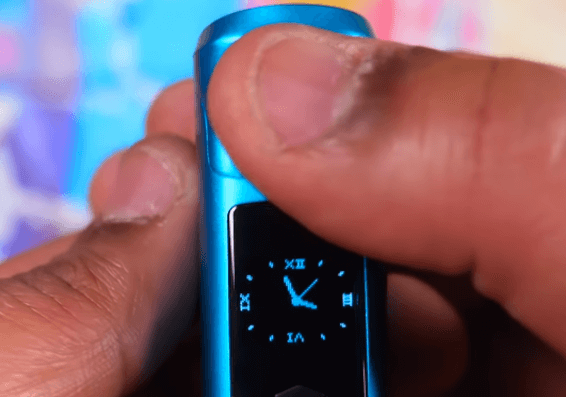

-Lock & Unlock

Press the fire button three times or hold for 3 seconds to unlock/lock.



target-mini-2-6

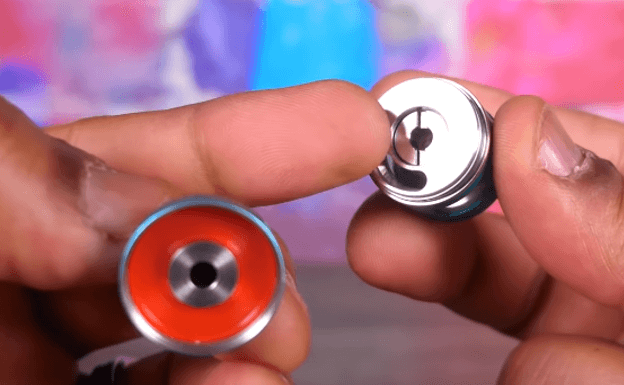

- Filling E-Juice

Please unscrew the drip tip directly; then you can fill your favorite E-juice through the opening.



target-mini-2-7

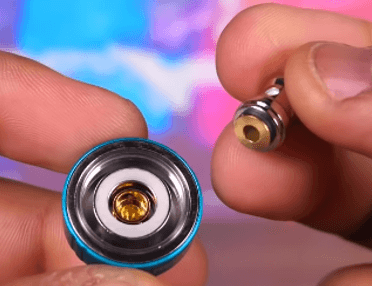

- Replace coil

Please unscrew the bottom part of the tank; then you can replace coil directly by pulling the old one out.



target-mini-2-8

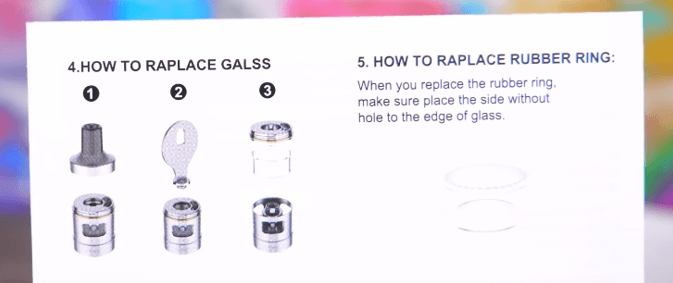

- Replace glass

Please unscrew the drip tip first and use the glass replacement tool to unlock the holder in the middle. Then using the tool to remove the cover by prying against the injection slot. After that, you can pull out the glass and make the replacement.



target-mini-2-9



Mode Settings

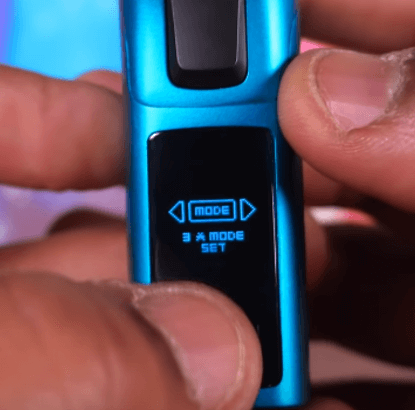

In the case of unlocking, press the mode button three times to enter the mode selection.



target-mini-2-10

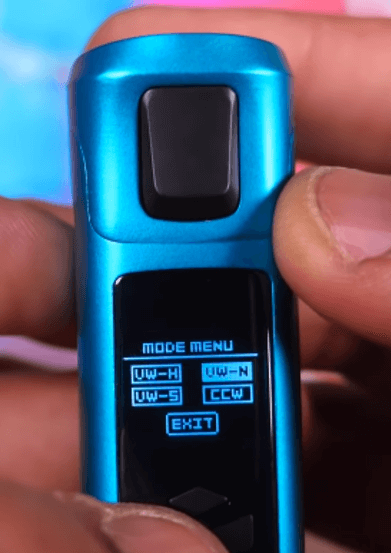

VW-H/VW-N/VW-S (Variable Wattage mode – high/normal/soft): These modes will automatically select the adequate average wattage for your atomizer according to different ohms resistance.



target-mini-2-11



CCW (Custom Curve of Wattage mode): Use the up and down buttons to customize your curve of the wattage output line. Move to the next bar with a quick press of the fire button, press the mode button to save and exit when done with the setting.

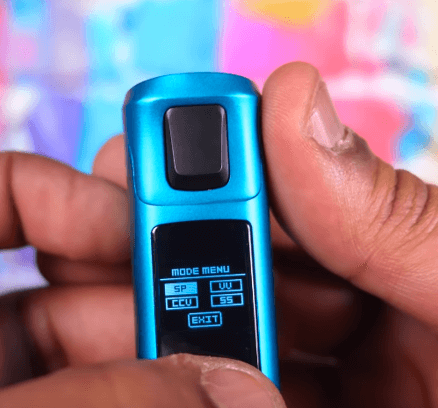

SP (Super Player mode): In this mode, it will support broader resistance range from 0.03Ω to 5Ω, which is adaptive to mainstream RDA tanks.



target-mini-2-12

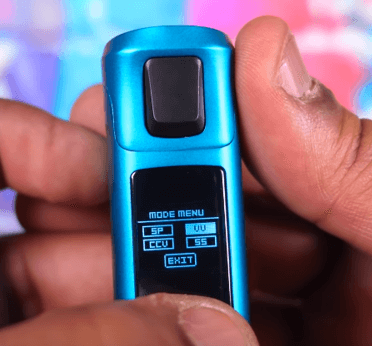

VV (Variable Voltage mode): You can manually adjust the voltage to match the resistance of the coil you use. The higher the resistance of the coil you use, the higher the voltage it requires correspondingly.



target-mini-2-13



CCV (Custom Curve of Voltage mode): In this mode, you can use the up and down buttons to customize your curve of voltage line. Move on to the next bar with a quick press of the fire button, press the mode button to save and exit when done with the modifications.



SS/NI/TI: Variable temperature control mode for Stainless Steel/Nickel/Titanium material (Auto Function enabled). The device can separately support Nickel 200, Titanium, and Stainless Steel coils smartly. It will intelligently adjust temperature control parameters based on the heating wire material's resistance value you use. Also, it allows you to change the startup wattage.



M1/M2 (Temperature Coefficient of Resistance): You can choose your manual setting and set the TCR at different values within a proper range, below shows the recommended range of the heating material:



Material

Nickle

Titanium

NiFe

SS (303, 304, 316, 317)

TCR Value Range

600-700

300-400

300-400

80-200

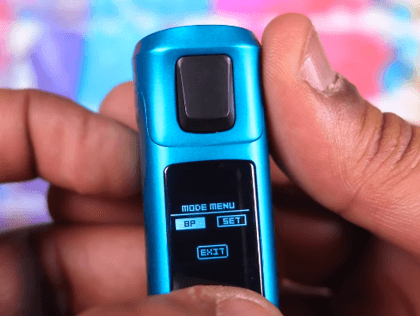

BP (Bypass mode): Direct output voltage mode depends on battery level, supported coil resistance range: 0.05-5ohm.



target-mini-2-17



Other Settings

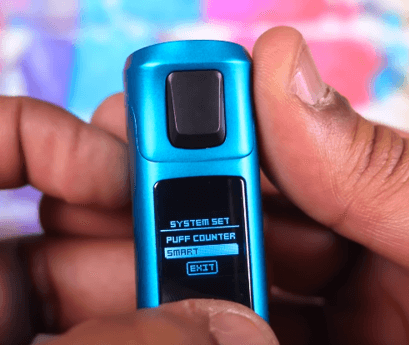

SET: System setting, including DEFAULT/TIME SET/BRIGHTNESS/ PUFF COUNTER/SMART ON OFF/ AUTO ON. OFF/ SCREEN/ VERSION.



SMART ON/OFF: It is an advanced Variable Wattage mode when the smart function is enabled. It can change intensity according to the coils resistance levels within a safe limit in VW-H/N/S mode.



target-mini-2-19



AUTO ON/OFF: The Auto function taking away any operation difficulties switching between VW-H and VW-N or between VT-H and VT-N.
