INTRODUCTION OF OMNI BOARD 4.0

     We're excited to launch our new product: POLAR and its updated Control Chip OMNI Board 4.0.

    The POLAR show the evolution of Vaporesso products, also the OMNI board 4.0 reflect our latest technology and desire to ensure its excellent performance .in the updated OMNI board 4.0 covering newly added full temperature control and Insta-fire function - the highest firing speed of 0.001s! PCBA Water resistant, 2.5A quick charge, multi protection and further optimization designed for the GT meshed coil, all help to produce a more flavorful yet more safe vaping experience for you.

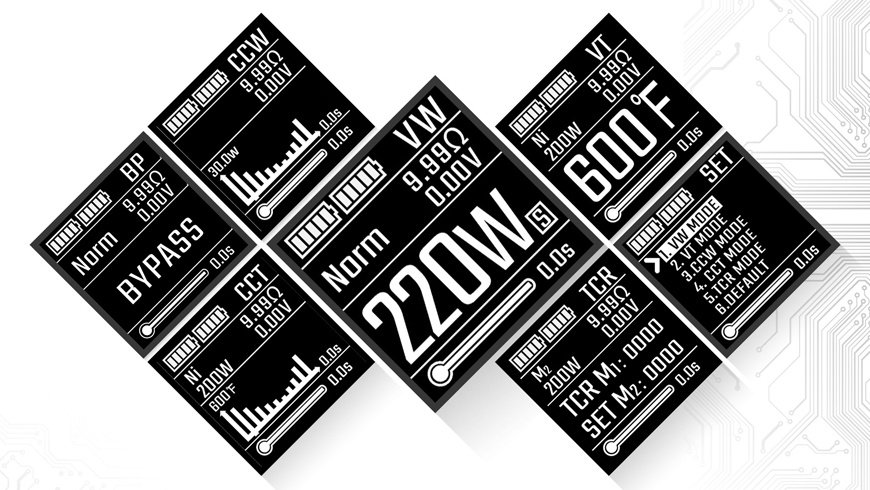

    For more of the OMNI board 4.0 mode and their detail explanation please check the below.





Items

Function

Function detail

1

VW-H

VW-N

VW-S

(Variable Wattage)

Mode

    As an advanced Variable Wattage mode, there are 3 levels: VW-H(High); VW-N (Normal); VW-S( Soft). The default setting is Normal. In VW mode, the device will automatically adjust the voltage to support the wattage you selected. If you want to switch between different ohms resistance, you don’t need to change your wattage setting, your mod will automatically select the adequate average wattage for your atomizer.

2

CCW

(Custom Curve of Wattage) Mode

    To customize you own curve of wattage line using the plus and minus buttons (Ramp-up time and consequent performance); move on to the next bar with a quick press of the fire button When all modifications are done just press the mode button to save and exit.

3

SP (Super Player) Mode

    In SP mode, it has broader resistance range from 0.03Ω-5Ω which is adaptive to mainstream RDA tanks.

4

VV (Variable Voltage) Mode

    Variable Voltage works by adjusting the voltage up or down to match the perfect heat level. You will have to change different voltage since different tanks have different resistances. If you are using the tank with higher resistance, you just need to increase your voltage. Vice Versa.

5

(Newly Added)

CCV (Custom Curve of Voltage) Mode

    To customize you own curve of voltage line using the plus and minus buttons (Ramp-up time and consequent performance); move on to the next bar with a quick press of the fire button. When all modifications are done just press the mode button to save and exit

6

Auto VT(Variable Temperature) NI(Nickel)/ TI(Titanium)/ SS(Stainless Steel)-- Mode

     When device is in VT-NI/ TI/ SS mode(Auto Function enabled), the device can separately support Nickel 200, Titanium, and 316 Stainless Steel coils smartly . In this mode, it will intelligently adjust temperature control parameters based on the heating wire material's resistance value, also it allows you to change the startup wattage.

7

M1/M2 Mode TCR(Temperature Coefficient of Resistance)

    You can choose your own Manual setting and set the TCR at different values within proper range.

8

BP (Bypass) Mode

    Direct output voltage system is applied in Bypass mode. The higher the battery level is, the higher the output voltage is. When set in this mode, the device can support a coil whose resistance is within the range of 0.05-5ohm.

9

(Newly Added)

Smart ON/OFF

    As an advanced Variable Wattage mode, when you turn on the smart function, it can change intensity according to the coils resistance levels within a safe limit in VW-H/N/S mode.

How to enable it: System Menu > SET > SMART ON/OFF

10

(Newly Added)

Auto ON/OFF

    The Auto function taking away any operation difficulties switching between VW-H and VW-N or between VT-H and VT-N.

How to enable it: System Menu > SET > AUTO ON/OFF

11

Default

    You could reset to default setting by entering Default and pressing YES

12

Automatic Atomizer Recognition

    To achieve better temperature control effect, the mod will ask the user if the new atomizer is attached. " OLD LOAD: -, NEW LOAD: + " will appear on the display. If a new atomizer is attached, press " + ", the mod will read new resistance; if not, press " - ", the mod will read at locked resistance.
